Project Repair:
Capilano Road
Moisture damage had resulted in rotting of a portion of the exterior wall at the bathroom. The wall structure needed to be repaired, the window needed to be replaced, and the base of wall needed to be waterproofed to prevent standing water on the exterior concrete slab from being sucked up into the new wood framed wall.
moisture damage area
close-up view of rot damage
elevated moisture readings taken at wall base

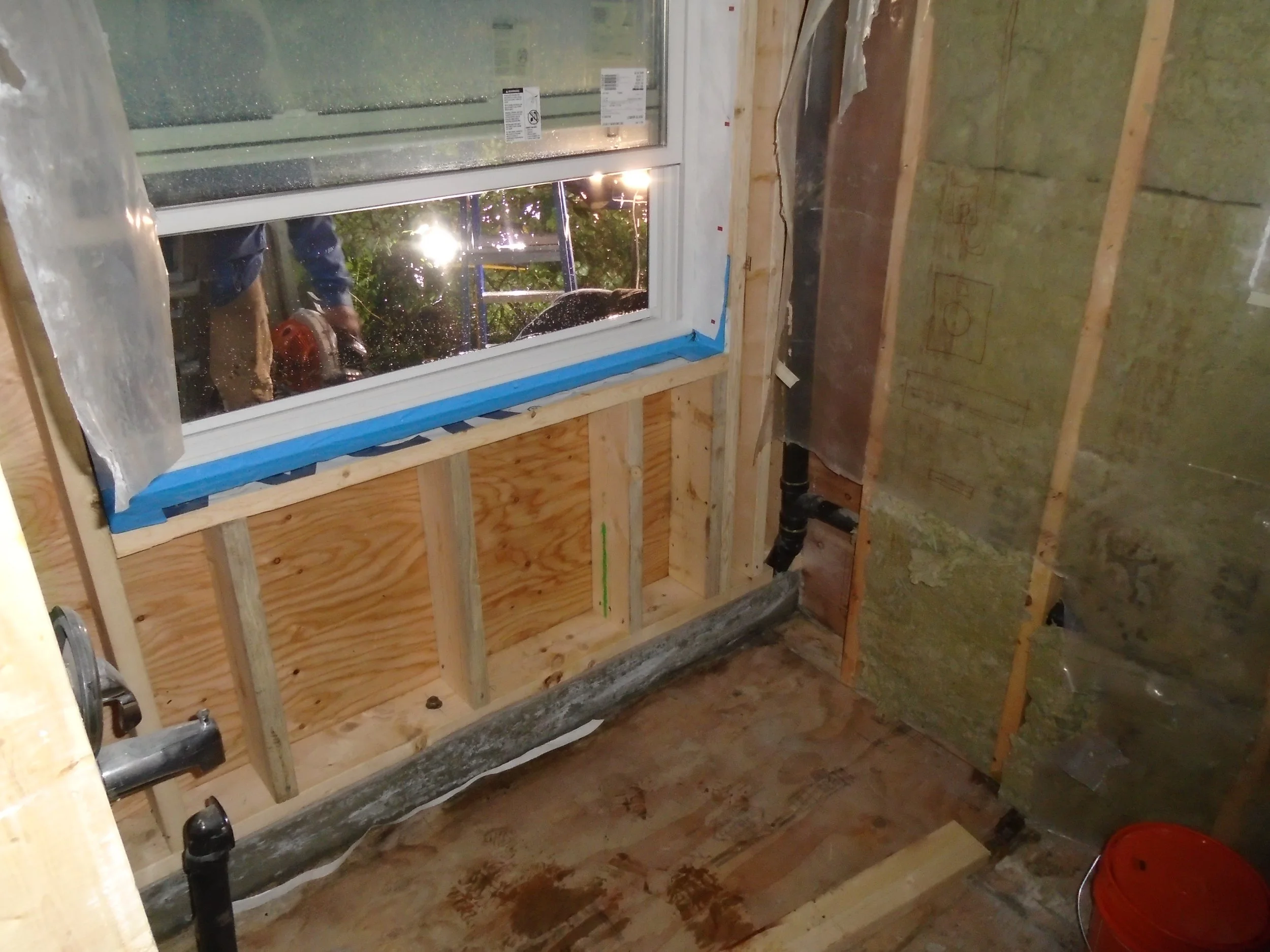

view of repaired structure from interior with new window installed

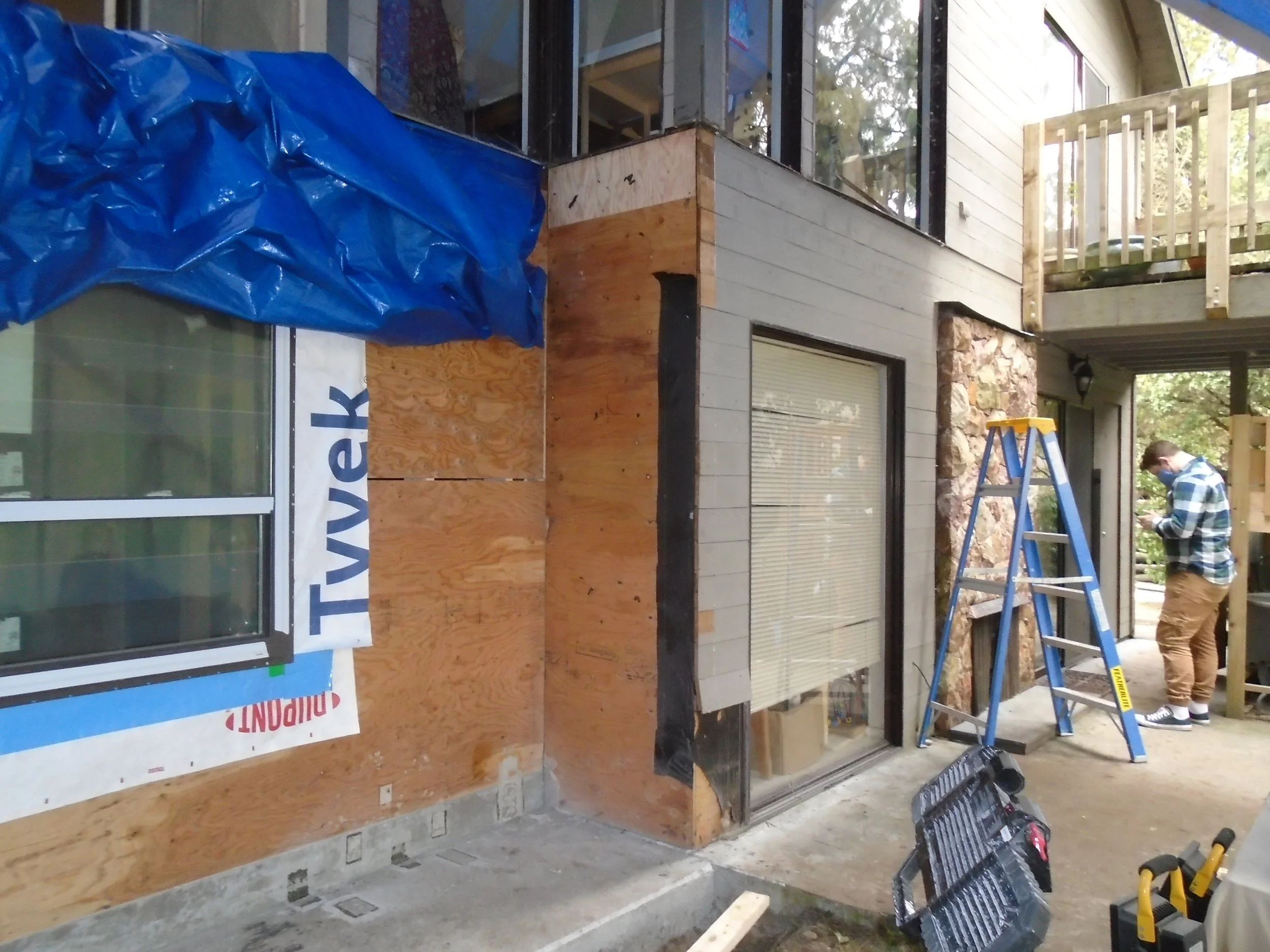

view of repaired structure from exterior with new window and curb installed

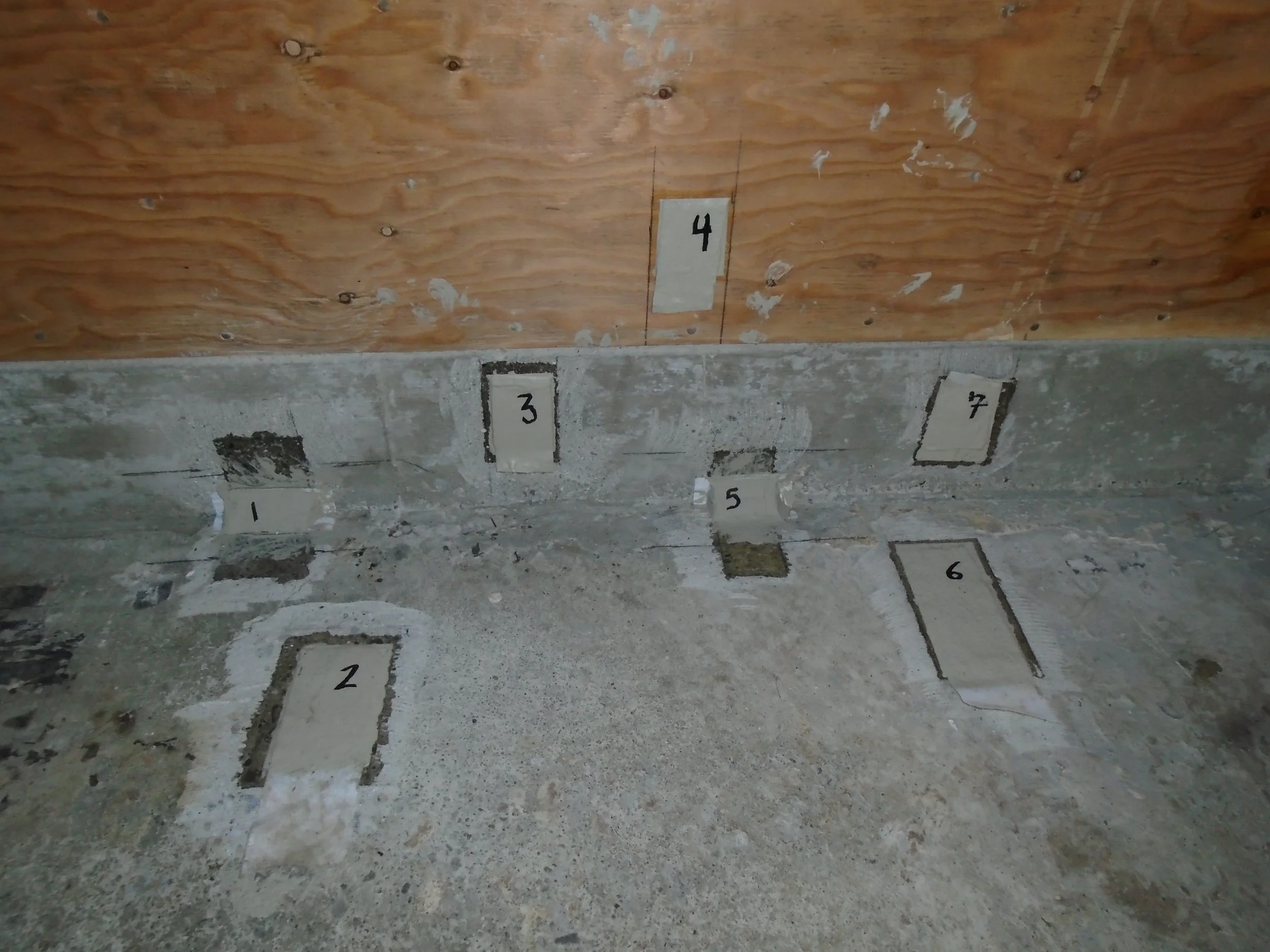

membrane adhesion testing to new concrete curb and existing concrete slab

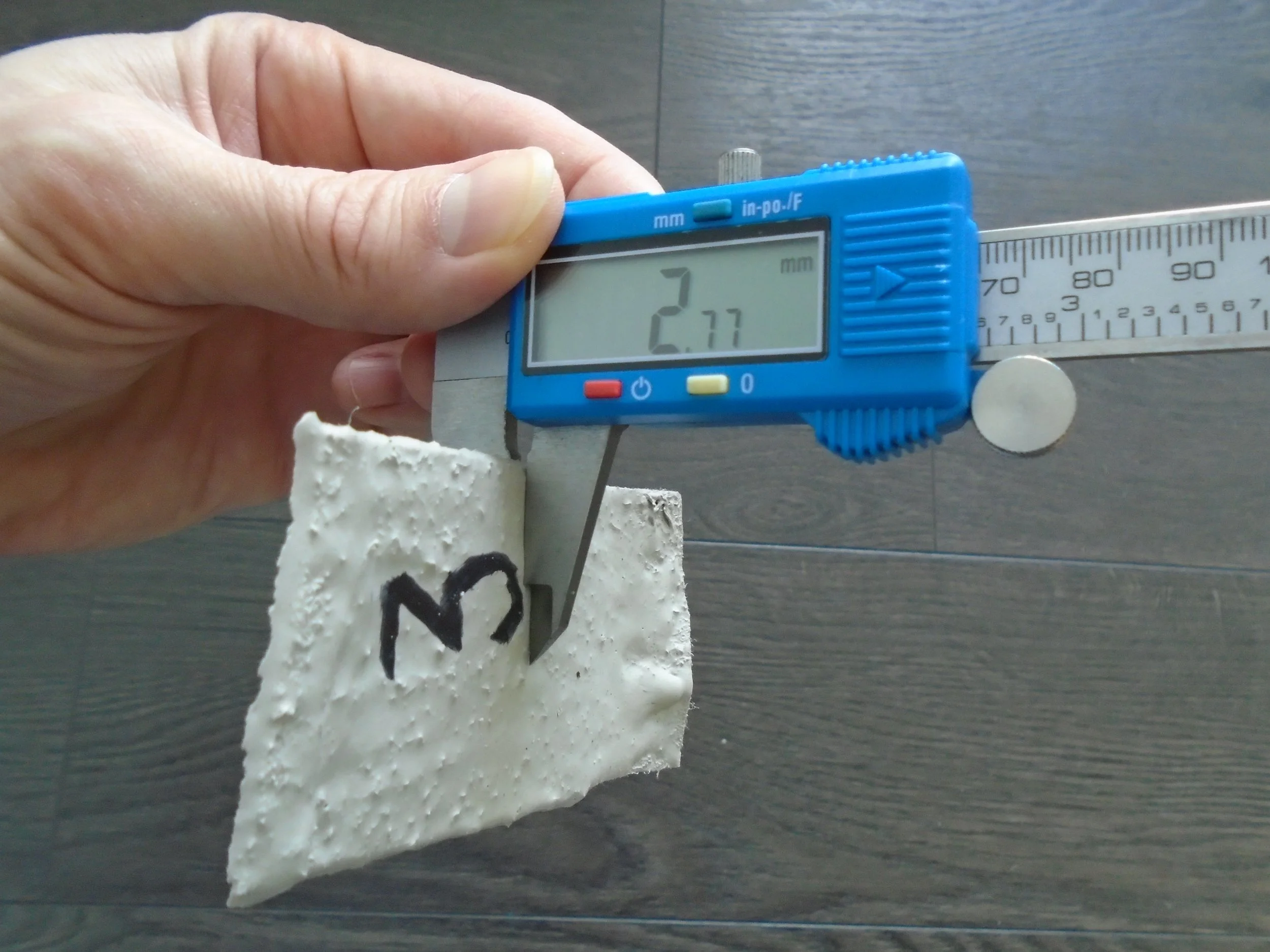

membrane thickness testing for quality assurance

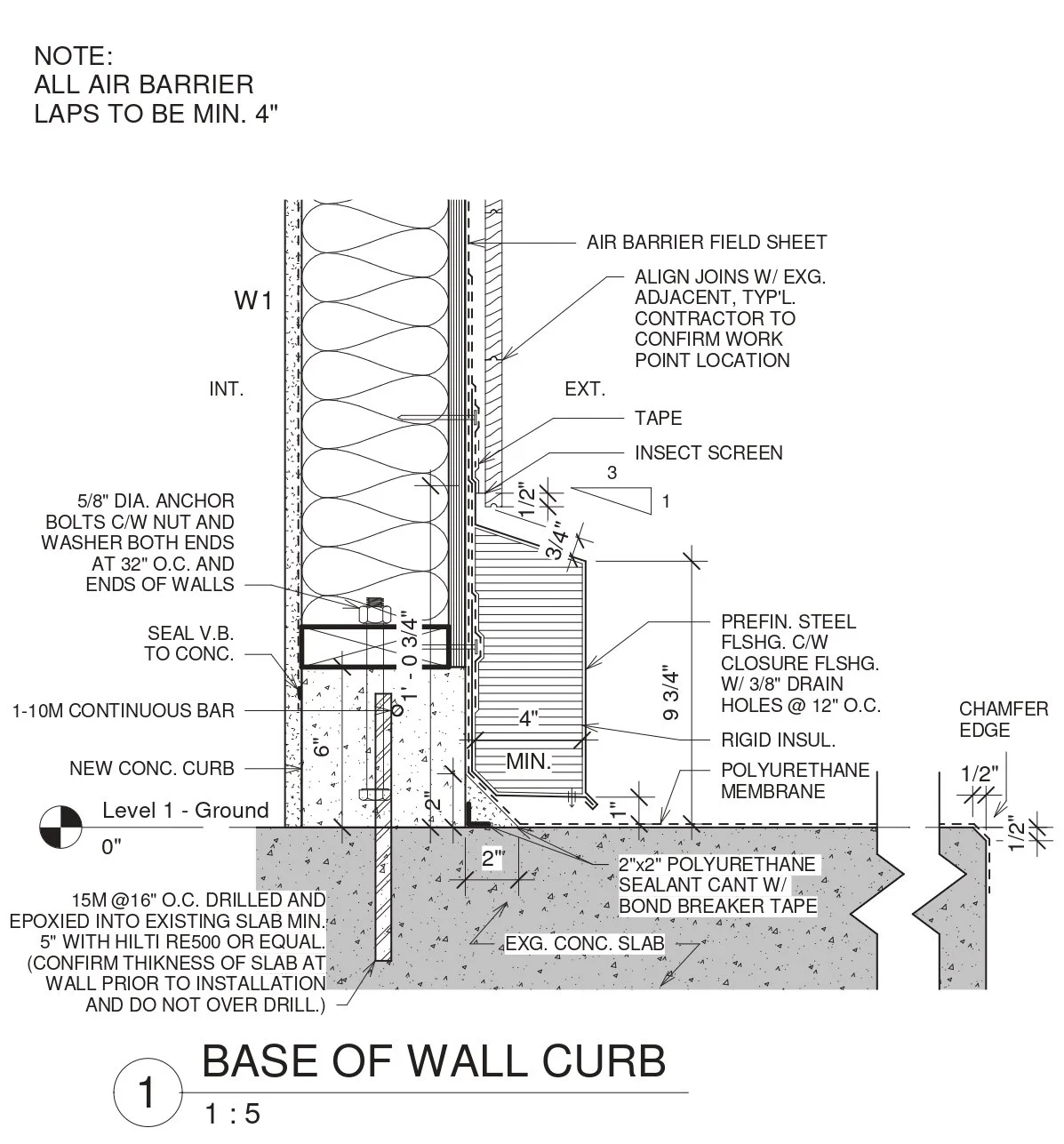

new base of wall detail at repair area
